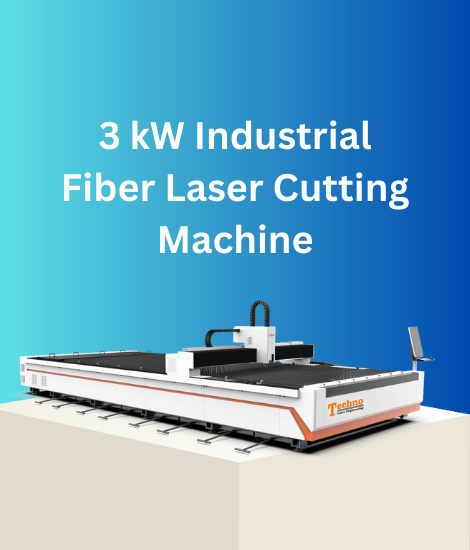

High-Precision Laser Cutting Machine for Metal Sheet
Specifications 1KW Laser Cutting Machine for Metal Sheet
| Feature | Specification (3kW Model) |
|---|---|
| Laser Power | 3kW Fiber Laser |
| Cutting Material | SS, MS, GI, Aluminium, Brass & Copper |
| Max Sheet Size | 3000mm x 1500mm (optional: 6000 x 2000) |
| Max Cutting Thickness | MS: 14–16mm | SS: 8–10mm | Aluminium: 6mm | Brass/Copper: 4–5mm |
| Repeat Accuracy | ±0.02mm |
| Cutting Speed | Up to 45–60 m/min (material dependent) |
| Controller | CypCut / FSCUT 3000 Series |
| Transmission | Dual Servo Motors + High-precision Rack & Pinion |
The 3KW Laser Cutting Machine for Metal Sheets is the perfect solution for businesses struggling with slow speed, rough edges, and high material wastage caused by manual cutting. Many small workshops even start with a 1kW Laser Cutting Machine For Metal Sheet, and as their demand grows, they upgrade to 3kW for higher speed and thicker cutting.
Whether it’s a small workshop or a growing fabrication unit, the 3kW machine provides clean, accurate, and fast cutting without requiring a heavy investment. It easily cuts materials like stainless steel, mild steel, and aluminum, ensuring smooth daily production. If you want to increase productivity, reduce costs, and maintain consistent quality, the 3kW laser cutting machine is a reliable and budget-friendly choice.
Top 5 Advantages of Our Laser Cutting Machine for Metal Sheet
Wide Cutting Capacity (0.1 mm to 30 mm) – The Perfect Solution for Every Metal Sheet
Our laser cutting machine is designed to easily cut from ultra-thin metal sheets (0.1mm) to heavy-duty industrial thick plates (30mm). Our machine gives you a smooth finish, clean edges, and no burrs. It works well for SS, MS, aluminum, copper, and brass. This wide cutting range lets you tackle projects across different industries with one machine. This boosts productivity by three times.
Multiple Fiber Laser Power Options – From 1 kW to 12 kW
Every business has different requirements. That's why our machines are available in 1 kW, 2 kW, 3 kW, 6 kW, and 12 kW power variants. No matter if you run a small shop or a big factory, you can pick the right power for your sheet thickness, metal type, and production volume. This flexibility gives you long-term investment value.
Smart Auto-Focus Cutting Head – Fast and Accurate Cutting
The auto-focus cutting head detects the sheet's thickness. It then adjusts the laser's focal point. This improves cutting speed, eliminates manual errors, and ensures a perfectly smooth cut. This feature is a game changer, especially for complex designs and continuous production.
Low Power Consumption – High Output, Low Cost
The machine uses fiber laser technology. This saves 30–40% more electricity compared to traditional CO₂ systems. You not only get high speed and high precision, but also significantly reduce monthly operating costs. For manufacturing units, this is the best option for long-term operational savings.
High Precision Cutting (±0.02 mm) – Industrial-Grade Accuracy
Repeat accuracy of ±0.02 mm ensures the exact same output for every batch. Our laser cutting machine delivers precision in every cut, whether for automotive parts or detailed metal signs. This accuracy is crucial for quality control.
FAQ –Fiber Laser Cutting Machines
You will find yourself working in a true partnership that results in an incredible experience, and an end product that is the best.
What types of metal sheets can a 3KW laser cutting machine cut?
A 3KW laser cutting machine can easily cut metal sheets such as SS, MS, GI, aluminum, brass, and copper. It is best suited for thin to medium thickness materials where precision, smooth edges, and low heat distortion are required. It is an ideal choice for small fabrication units and workshops.
What is the maximum cutting thickness of a 3KW machine?
A 3KW fiber laser usually provides smooth cutting up to 6–8mm in MS, 3–4mm in SS, and 2–3mm in aluminum. The thickness depends on the machine brand, beam quality, and gas support. This thickness range is perfectly sufficient for regular fabrication needs.
Does a 3KW laser cutting machine provide high accuracy?
Yes, 3KW machines offer repeat accuracy of up to ±0.02mm, which is considered CNC-level precision. This accuracy makes them very reliable for signage, sheet metal parts, bracket manufacturing, and precision component production. This is ideal accuracy for small-scale industries.
What is the running cost of a 3KW laser cutting machine?
The running cost of a 3KW machine is low because it consumes less electricity, requires minimal consumables, and has low maintenance costs. The cost varies depending on the usage of nitrogen or oxygen gas, but overall, it is more cost-efficient than CO2 or plasma cutting.
Can a 3KW laser cutting machine cut reflective metals like aluminum and copper?
Yes, modern 3KW fiber lasers can safely cut reflective metals. However, the thickness limit for reflective materials is in the thin range. Proper parameters, gas selection, and safety coatings yield even better results. It is perfect for small fabrication shops for making aluminum brackets, nameplates, and light parts.
Is a 3KW laser cutting machine beginner-friendly?
Absolutely, a 3KW laser cutting machine comes with user-friendly control software, automated focusing, and smart safety features. With some basic training, beginners can easily operate the machine. Controllers like CypCut make it even simpler and more intuitive.
What is the production speed of a 3KW laser cutting machine?
A 3KW machine provides high-speed cutting in thin sheets, resulting in very fast production. It can achieve cutting speeds of up to 20–35 m/min in 1–2mm mild steel sheets. This speed is ideal for small batch production, prototyping, and regular industrial jobs.
Is a 3KW laser cutting machine maintenance-intensive?
No, fiber laser technology is known for its low maintenance requirements. You only need to perform lens cleaning, nozzle replacement, and basic alignment checks. The machine does not have any glass tubes or complex optics, so the long-term maintenance cost is much lower compared to plasma or CO2 systems.
What factors determine the price of a 3KW laser cutting machine?
The price depends on the laser source brand, machine bed size, controller type, servo motors, cutting head, and accessories. Chinese 3KW systems are budget-friendly, while European sources offer higher reliability. The price varies depending on the type of materials you work with and your daily production targets.
Is a 3KW laser cutting machine a profitable investment for small businesses?
Yes, a 3KW machine is a profitable choice for small workshops and startups. Due to low power consumption, easy operation, low maintenance costs, and consistent quality, the return on investment (ROI) is fast. If you have regular jobs involving thin to medium sheet materials, the machine can recover its cost within 6–12 months.
